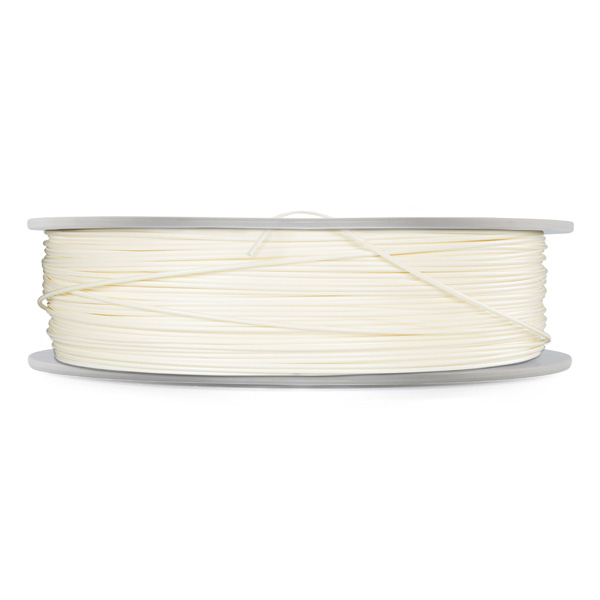

High-quality water-soluble support material that can be used with many types of polymers and easily dissolves in cold water. This eco-friendly material provides support for printed objects with overhangs or particularly complex structures. Verbatim BVOH always meets the strictest quality control standards, ensuring excellent layer formation and adhesion.
Product Details
- Butenediol vinyl alcohol copolymer (BVOH) for 3D printing
- Water-soluble support material
- After dissolution, wastewater can be disposed of via standard sewage systems**
- Excellent layer structure and adhesion quality
- Best combined with ABS, PLA, and PET materials
- Material is sensitive to light and UV radiation
- High solubility
- Main applications: Support materials for 3D printing, especially for geometrically complex parts
**To dispose of this material, at least 20 times its weight in water is required (i.e., a minimum of 20 ml of water per 1 g of BVOH) with a maximum daily disposal of 2 kg of BVOH. Higher daily usage will require professional ecological wastewater treatment.
Product Specifications
- Diameter accuracy: 1.75 mm ± 0.07 mm
- Net weight: 0.5 kg
- Filament length: 182 m
- Melting temperature: 176 "C
- Melt Flow Rate @ 230 "C, 21.1N: 7.5 g/(10 minutes)
- Density: 1.14 g/cm³
- Vicat softening temperature: 92 "C
- Glass transition temperature: 68 "C
- Flexural strength: 71 MPa
- Flexural modulus: 2900 MPa
- Tensile Strength: 45 MPa
- Elongation at break: 9.0%
Spool Dimensions
- Spool diameter: 200 mm
- Spool depth: 72 mm
- Hub diameter: 102 mm
- Hub hole diameter: 51 mm
Recommended Printer Settings
- Extrusion temperature: 210±10 "C
- Bed temperature: 60 "C
- Print speed: 30 mm/s
