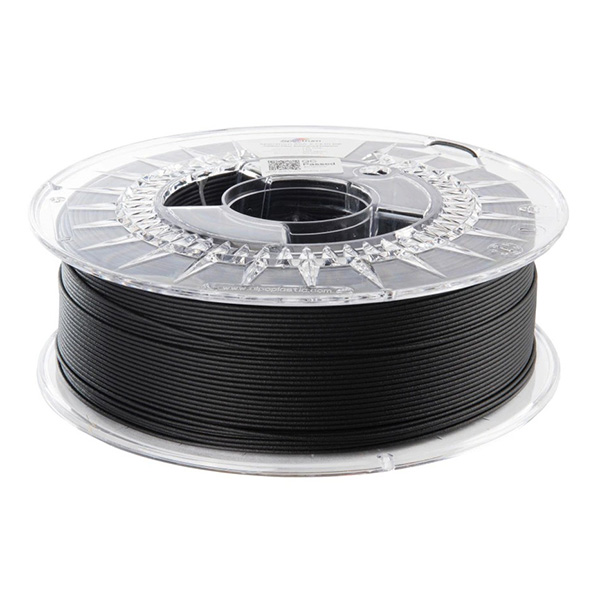

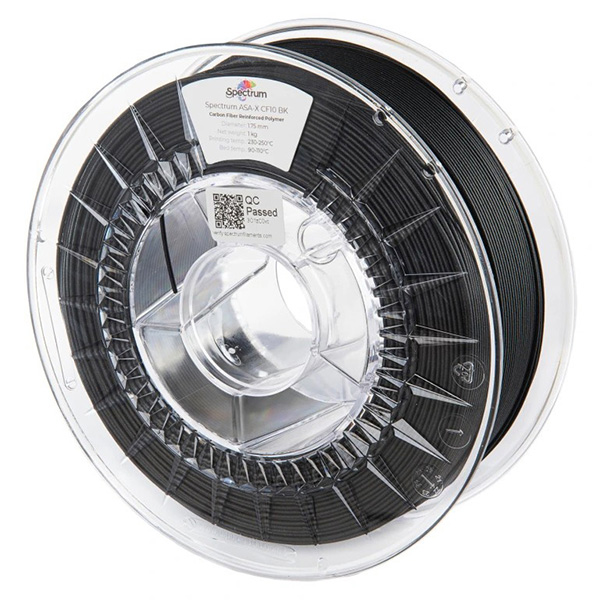

Based on user feedback analysis of Spectrum filament, the product range for outdoor use under increased exposure to UV radiation, temperature, and humidity was expanded. ASA, a well-known polymer and highly durable alternative to ABS, became the basis for another composite material, Spectrum ASA-X CF10.
The primary goal was to develop a material that guarantees consistently high mechanical performance of printed models, especially regarding hardness and stiffness, even during long-term outdoor weather exposure. The result is Spectrum ASA-X CF10, a composite based on carefully selected ASA filled with carbon fibers.
It provides users with a filament resistant to external influences such as sunlight (UV) and moisture (hydrolysis), with tensile strength over 7.5 GPa and heat resistance of 101"C. Spectrum ASA-X CF10 also has low shrinkage and is, unusually for technical materials with comparable properties, easy to print. Combined with a carbon matte surface that effectively masks print layers, Spectrum ASA-X CF10 has become a very popular choice among the 3D printing community.
Key Features:
- 10% carbon fibers
- heat resistance – 95"C
- softening point – 101"C
- excellent resistance to outdoor exposure
- UV resistance
- printable on desktop printers without a heated chamber
- carbon matte printed surface
- perfect layer adhesion
- easy to print
Applications:
- functional prototypes
- manufacturing equipment
- production of covers and enclosures
- production of parts subject to abrasive wear
- manufacturing tools
- components requiring high resistance to outdoor exposure
Filament Specifications:
- filament diameter: 1.75mm / 2.85mm
- extrusion temperature: 235–260"C
- bed temperature: 90–110"C
- print speed: 30–70mm/s
